The original import bend, ultrasonic transducer, strong stable output.
Bend, ultrasonic steel horns high rate stable output amplification solid and durable, avoid screw slided; Durable.
Bend, a full set of excellent high quality imported components assemblies, perfect line control, ensure the machine quality stable performance.
The bend, upper die adjustable balance, adjustable level; So that moulding-adjustment convenient operation, stable quality.
Bend, alloy steel straight column design, precision type lift wave wheel, held back for small, level, ensure accurate vertical work face a welding accuracy.
Bend and family design: the main electronic components on electronic box, and avoid vibration, the pneumatic components the long-term use of aging leaks out oil and water and cause the damage of the circuit, cooling performance is good, may extend the lifetime of machines.

Bend preloading, ultrasonic, the pressure of the control of time alone, 0.01 ~ 9.99 seconds set in advance, can send ultrasound or lag hair ultrasound;

Bend pressure control: panel pressure gauge shows, pressure regulating knob set; Bend speed control: rise and fall speed can be regulated independently;

Bend the use of advanced electronic technology loop, the voltage \ ammeter real-time monitoring load change and adjust electronic circuit, the realization of automatic after frequency, automatic adjustment, real-time adaptive different load conditions, make constant power output, restrain the frequency drift, effective protection products, mould, and machine;

Lord power tube bend the current main import plastic power tube, power consumption than the old line iron shell low power tube high

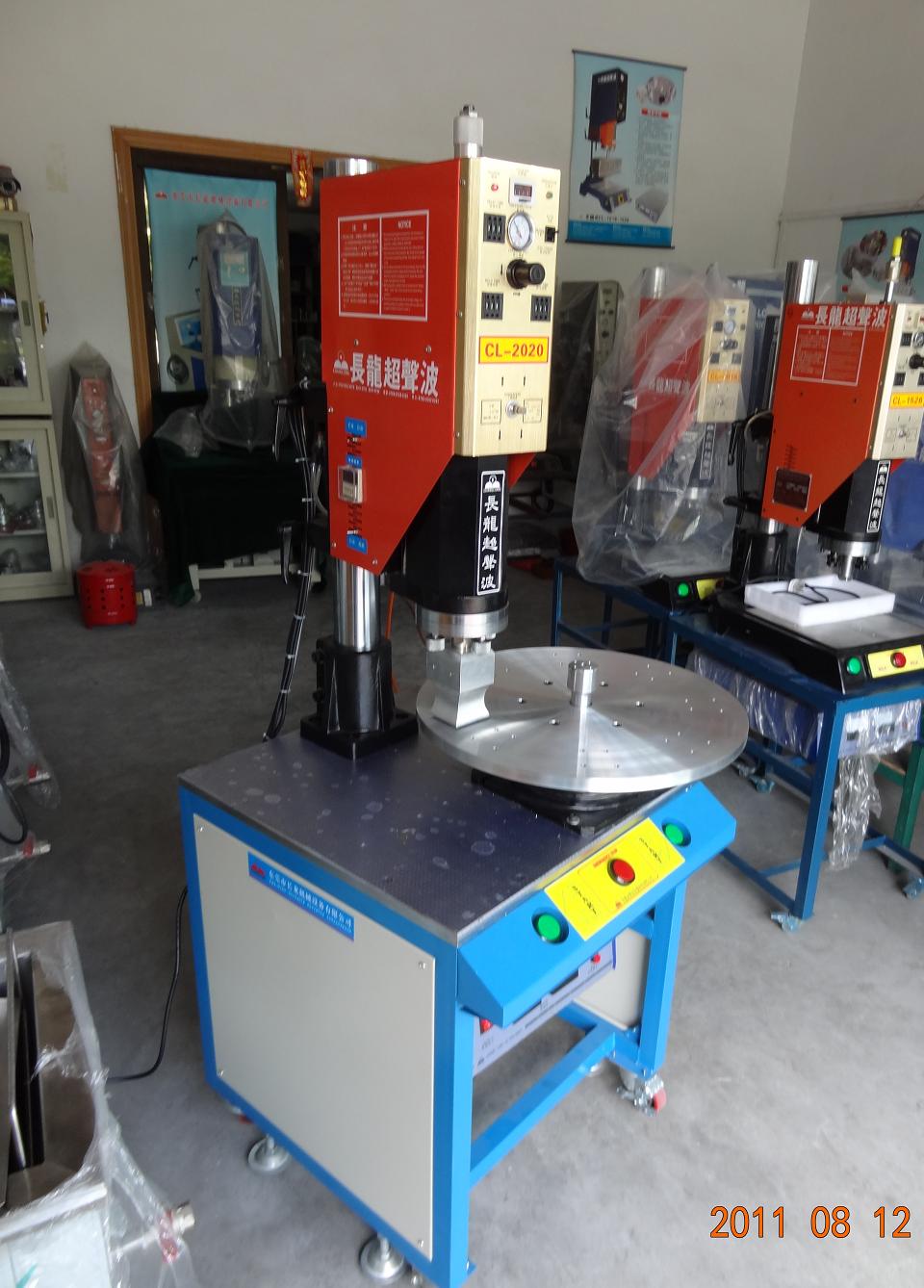

Turn bend disc automation ultrasonic welding workpiece, the speed can be control, manual and automatic control convenient moulding-adjustment,

Bend under the die can be positioning, can divide 6 Labour, 8 location, free assembly

Bend capacity: welding speed can reach 1 second 1 PCS

1 hour 3000 PCS

1 day 10 HRS may of 30000 PCS

Homework personnel: 1 (by artificial feeding, put, the material to be automatic into the box)

Specification:

The long dragon MODEL MODEL
Have Frequency
Outputpowe power output
Welding area weldingcaipbility
Envelop dimensions Dimension
Heavy volume Weight
The power Line returned

CL-2020 S
20 KHZ
2000 W
For 180 mm
1000 x 900 x 1800 mm
210 kg
220 V10A1P

Widely used in:

Stationery, toys, electronic, hardware, electrical appliances, machinery, medical, container, automobile, battery, communication, clothing, food and other industries and high schools and scientific research units.

Standard configuration:

Ultrasonic electricity box bend drive a bend tool box 1 (with 1 die activities on a wrench hook \ \ 1 set of metric hexagon spoon)

1 the bend manual
